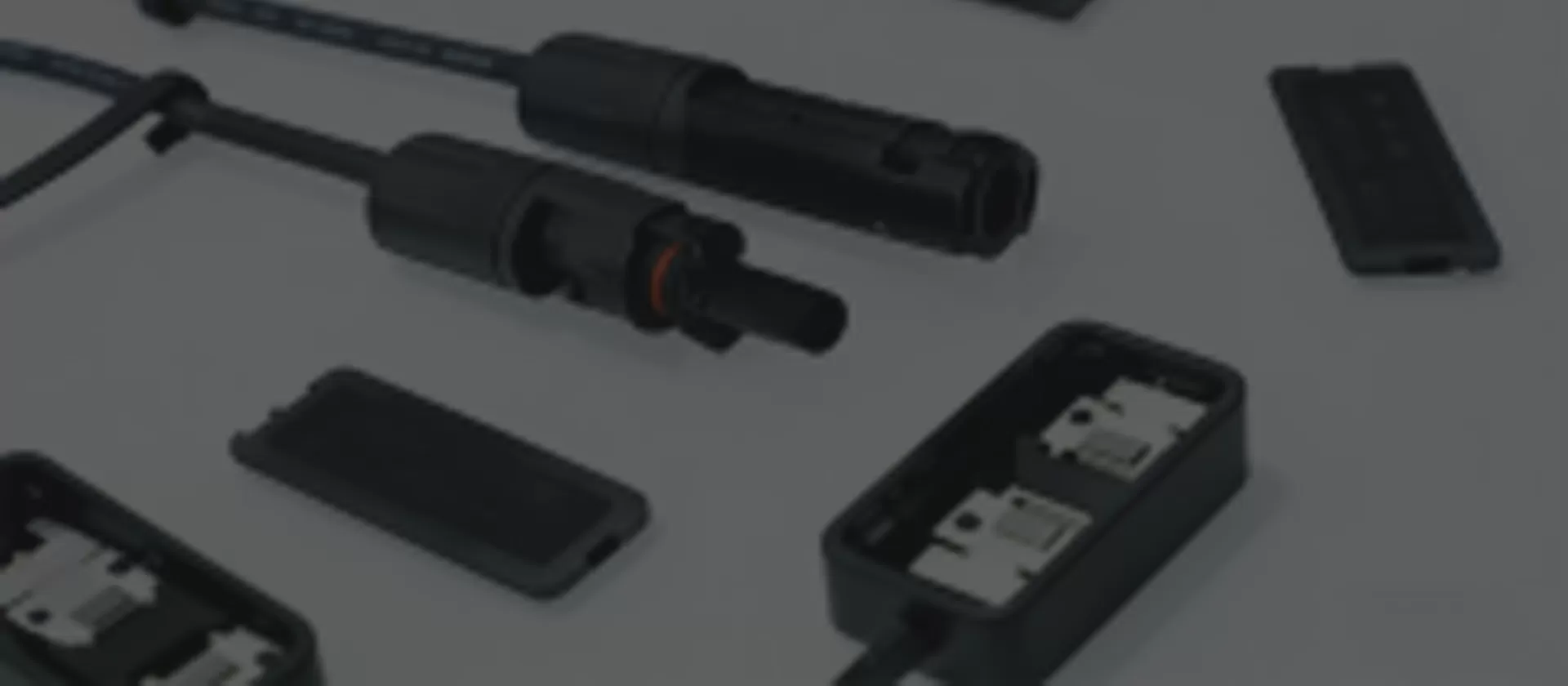

SPLIT JUNCTION BOX FOR FASTER SOLAR MODULE ASSEMBLY AND RELIABLE FIELD PERFORMANCE

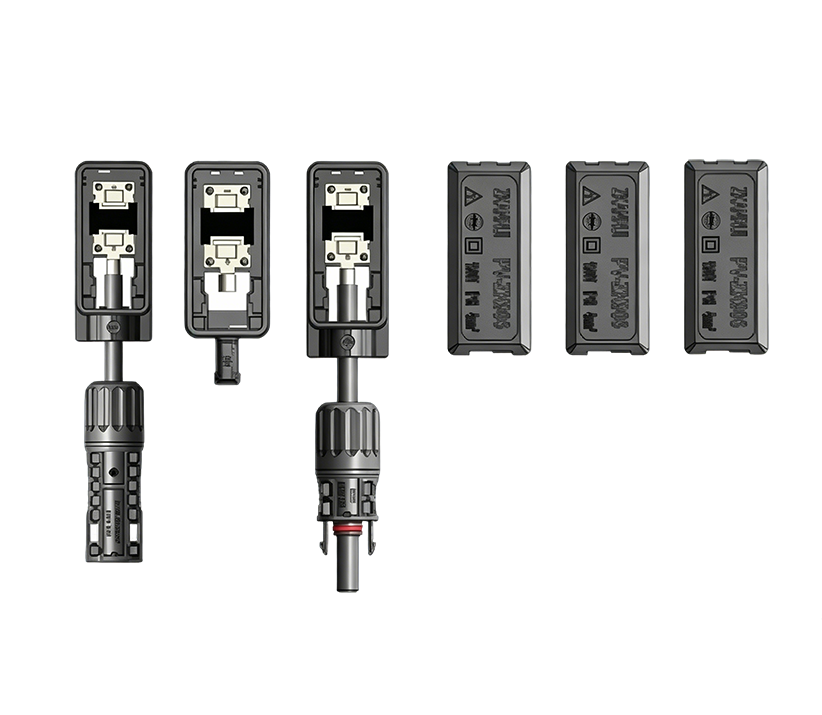

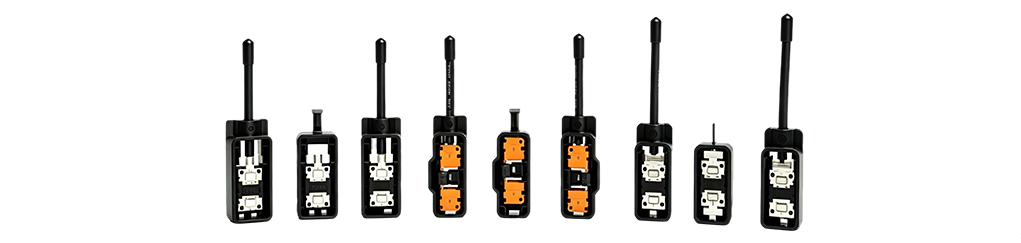

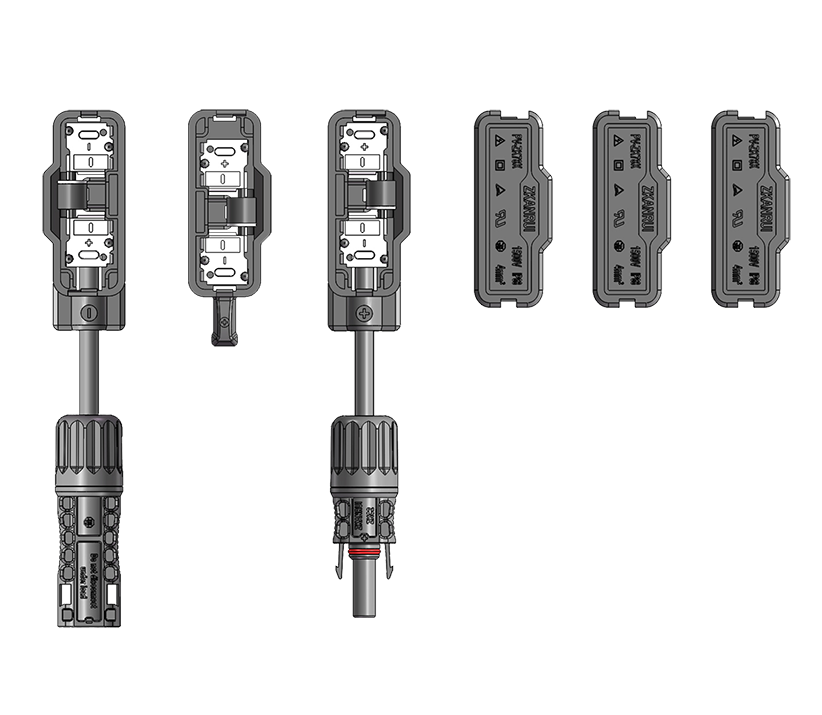

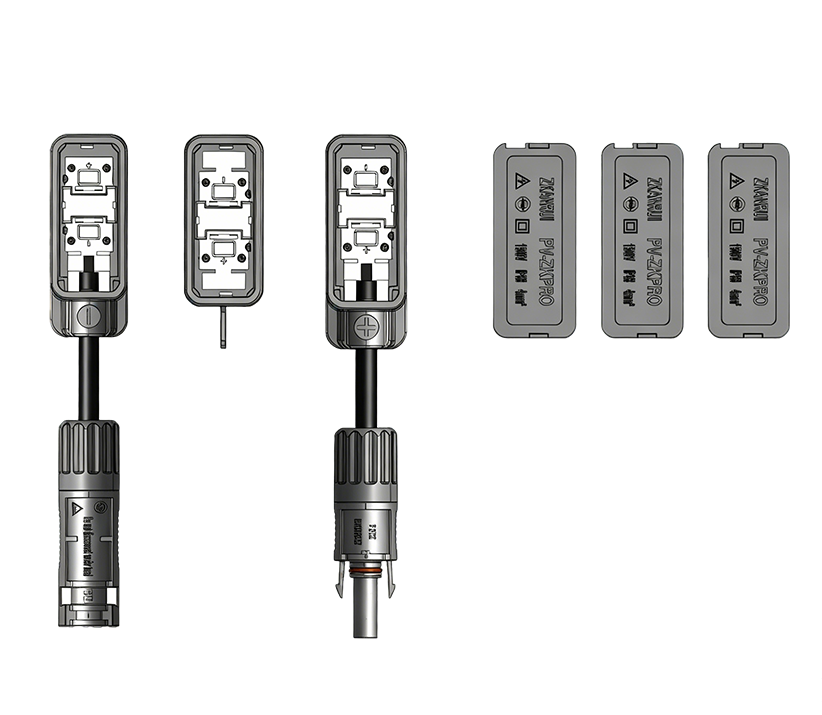

The split photovoltaic junction box adopts a modular design concept and consists of a flexible combination of a positive housing, a negative housing, and intermediate housings. Different from traditional integrated structures, it distributes bypass diodes across separate housings, effectively avoiding heat accumulation and significantly improving heat dissipation performance and system reliability. This design greatly shortens the length of internal busbars within the module, reducing resistive losses and thereby enhancing power generation efficiency. Additionally, the split structure facilitates easy installation and subsequent maintenance, and can flexibly adapt to photovoltaic modules of different specifications, making it an ideal choice for efficient, intelligent photovoltaic power stations.
