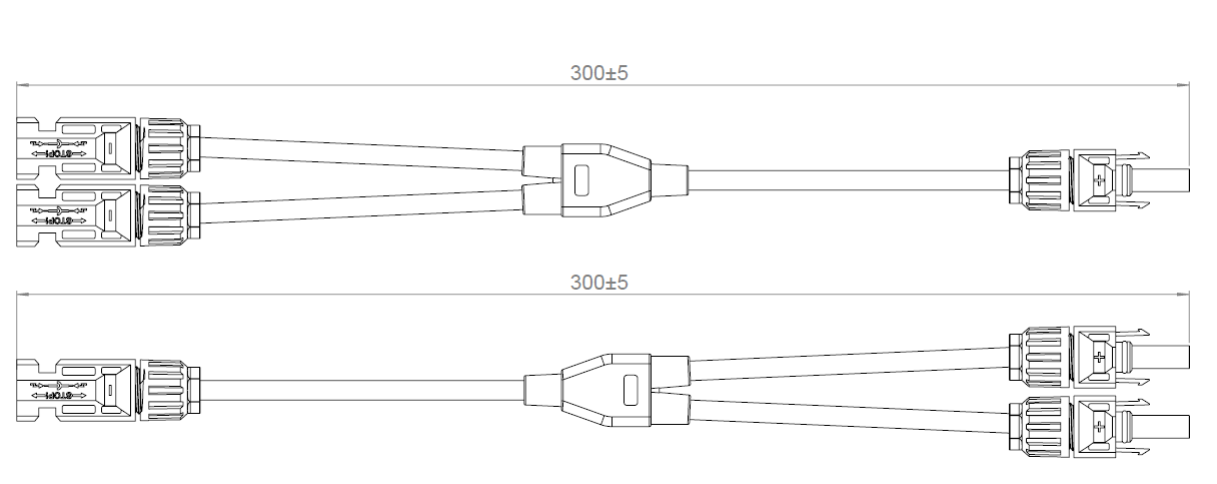

PV LTY2 Connector
Product Standard: IEC62852:2014 CE
Rated Voltage: 1500V DC
Protection Degree: IP68
Product Standard: IEC62852:2014 CE
Rated Voltage: 1500V DC
Protection Degree: IP68
| No. | Performance Item | Performance Parameter / Requirement |
| 1 | Rated Voltage | 1500V |
| 2 | Rated Current | 30A |
| 3 | Degree of protection | IP68 |
| 4 | Safety Class | Class II |
| 5 | Application Level | Class A |
| 6 | Operating Temperature | -40℃ ~ +85℃ |
| 7 | Connector Interlocking Force | ≥89N |
| 8 | Low-Temperature Mechanical Stability | After being subjected to 4 impacts of 1J each on the connector at -40℃ ± 2℃ for 5 hours, the connector shall show no damage. |
| 9 | Withstand Voltage | 6KV |
| 10 | Environmental Test | 1) After 1000 hours of damp heat aging test at 85℃ and 85% relative humidity, the connector performance shall still meet the requirements.2) After 200 cycles (total 200 hours) of high and low temperature cycling test between 80℃ and -40℃, the connector performance shall still meet the requirements. |
| 11 | Connector Mating Cycles | ≥ 100 times |
| 12 | Connector Contact Resistance | ≤0.5mΩ |
| 13 | Appearance | Marking:A) Product modelB) Output terminal polarityC) Electrical connector certification markMolding:A) No flash or burrsB) No contamination or oil stainsC) No sink marks or deformation |
