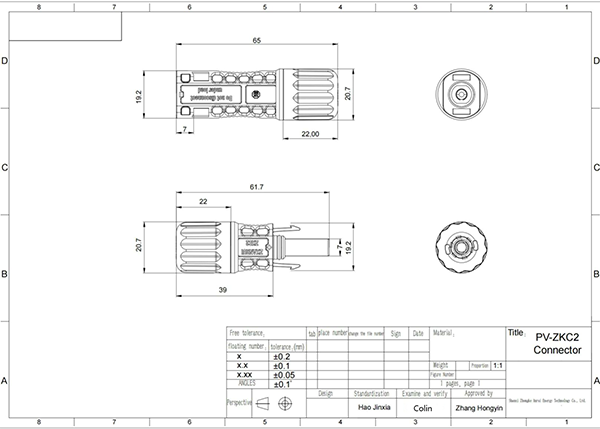

PV-ZKC2 is a photovoltaic connector is developed by our company, which composed of metal parts and insulating parts.
Passed various environment test with high electrical safety performance, can be widely used solar grid like commercial, industrial and residential roof photovoltaic devices.
| Main technical specifications | |||||
| Project | Performance index | Notes | |||
| Type | PV-ZKC2 | ||||
| TUV Certificate number | B104602 0005 Rev.00 | ||||
| Rated voltage (DC) | 1500 | V | IEC | ||
| Rated current | 35 | A | |||
| Rated current | 40 | A | |||
| Contact resistance | Max 0.5 | mΩ | |||
| Temperature range | -40℃~+85℃ | ℃ | |||
| Breaking capacity | ≥80 | N | |||
| Plug life test | 50 | times | |||
| Protection level | IP65/IP68 (1m, 1h) | ||||
| Safety Class | Class II | ||||
| Fire rating | UL94 V-0 | ||||

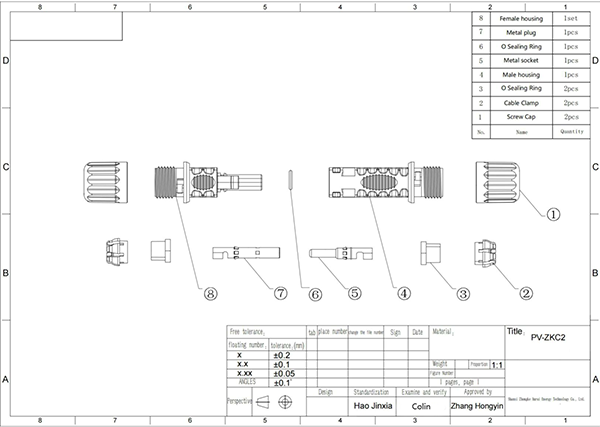

| BOM List | |||||
| NO. | Object | Type | Manufacturer | Quantity | Notes |
| 1 | Positive Housing | PV40Z | Asahi Kasei Corp. | 1 pcs | |
| 2 | Negative Housing | PV40Z | Asahi Kasei Corp. | 1 pcs | |
| 3 | Screw Cap | A3X2G5 | BASF SE | 2 pcs | |
| 4 | Cable Clamp | FR370 | Asahi Kasei Corp. | 2 pcs | |
| 5 | Sealing Plug | Silicone rubber | Ningbo Yucheng | 2 pcs | |
| 6 | O Sealing Ring | Silicone rubber | Ningbo Yucheng | 1 pcs | |
| 7 | Negative Pin | Copper, tinned | Ningbo Kailing | 1 pcs | |
| 8 | Positive Socket | Copper, tinned | Ningbo Kailing | 1 pcs | |
