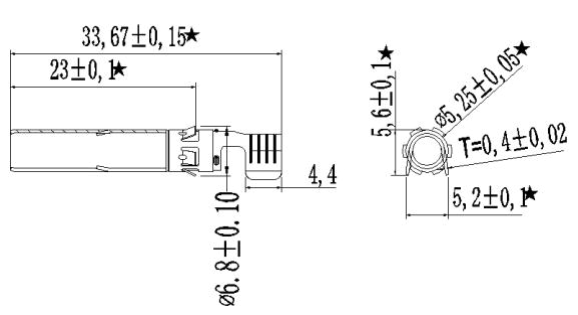

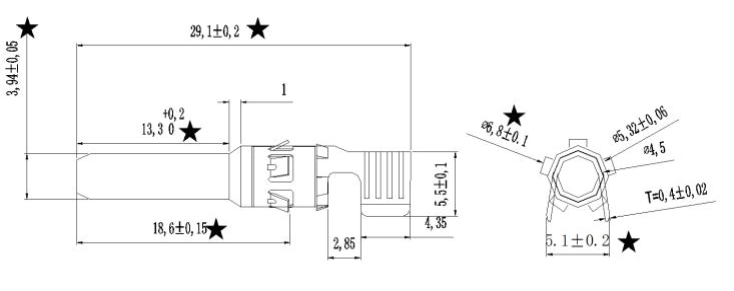

Dual Strip Pin and Socket Contact PV ZKC4
The photovoltaic pin and socket contacts are connected to the photovoltaic cable by crimping, suitable for DC1500V, and allows the use of standard crimping pliers.
The photovoltaic pin and socket contacts are connected to the photovoltaic cable by crimping, suitable for DC1500V, and allows the use of standard crimping pliers.
| Pin material | Pure copper + Stainless steel 301 |
| Socket material | Alloy copper + Stainless steel 301 |
| Plating requirements | Nickel underplating: 1–3μm; Surface tin plating: 3–5μm |
| Contact resistance | ≤0.4mΩ |
| Pin resistance | ≤0.15mΩ |
| Socket resistance | ≤0.15mΩ |
| Resistance after 100 insertion/withdrawal cycles | R1≤1.25R0 |
| Insertion force | ≤50N |
| Withdrawal force | ≥10N |
| Salt spray test | No visible corrosion after 48-hour salt spray test |
