Low power loss, high efficiency
High surge current capabity
Guardring for overvoltage potection
High temperature reverse characteristic is excellent
Trench Schottky Technology
Metal of silicon rectifier, majority carrier conduction

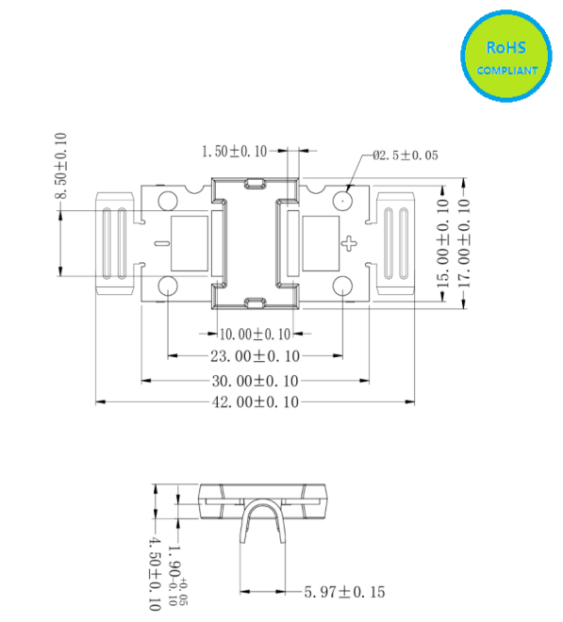

| Characteristics | SYM | ZK5045 | Unit |
| Maximum Repetitive Peak Reverse Voltage | VRRM | 45 | V |
| Maximum RMS Voltage | VRMS | 31.5 | V |
| Maximum DC Blocking Voltage | VDC | 45 | V |
| Maximum Average Forward Rectified Current @ Tc=125℃ | I(AV) | 50 | A |
| Peak Forward Surge Current, 8.3mS Single Half Sine-Wave, Superimposed on Rated Load (JEDEC Method) | IFSM | 500 | A |
| Peak Forward Voltage at DC Current (Note 1) @ 30A DC | VF | 0.5 | V |
| Maximum DC Reverse Current at Rated DC Blocking Voltage @ TJ=25℃ | IR | 0.1 | mA |
| Maximum DC Reverse Current at Rated DC Blocking Voltage @ TJ=100℃ | IR | 15 | mA |
| Typical Thermal Resistance Junction to Case | RθJC | 1 | ℃/W |
| Junction Temperature Range (Note2) | TJ | -55 to +200 | ℃ |
| Storage Temperature Range | TSTG | -55 to +150 | ℃ |
