MC4 and EVO2 Compatible PV ZKC4 Connectors

MC4 and EVO2 Compatible PV ZKC4 Connectors

PV-ZKC4 is a photovoltaic connector independently developed by our company, which is composed of metal parts and insulating parts. It connects multiple solar cell modules into a system, which has the characteristics of high stability and high sealing.

Meanwhile, it is resistant to various environmental and climate changes and has high electrical safety performance, thus ensuring the DC circuit connection of commercial, industrial and residential roof photovoltaic devices.

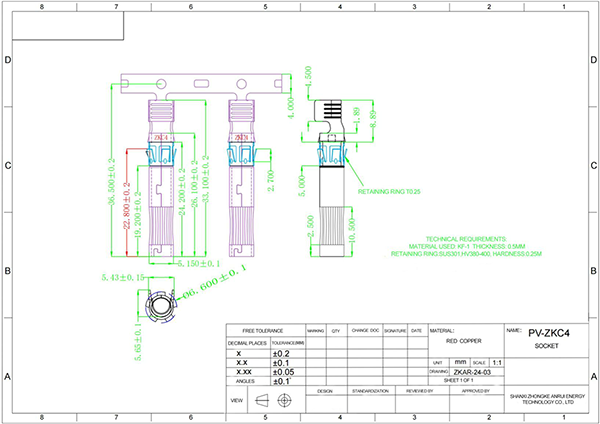

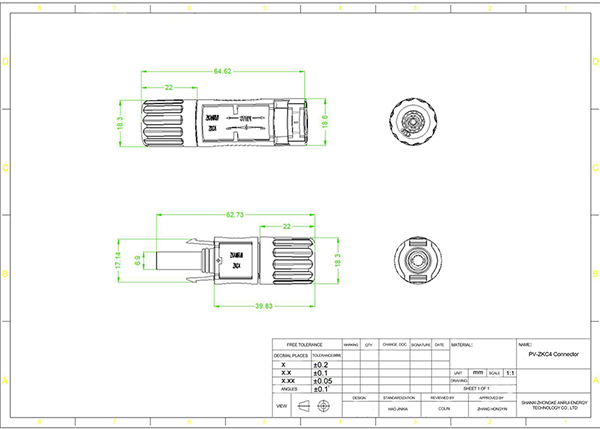

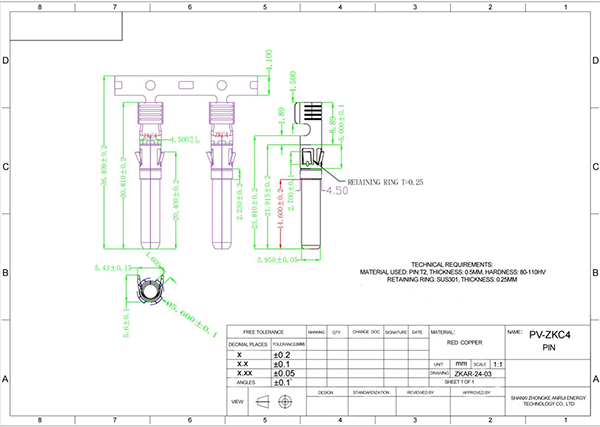

DRAWING OF MC4 AND EVO2 COMPATIBLE PV ZKC4 CONNECTORS



SPECIFICATIONS OF MC4 AND EVO2 COMPATIBLE PV ZKC4 CONNECTORS

Main technical specifications
ProjectPerformance indexNotes
TypePV-ZKC4
Rated voltage (DC)1500/2000VIEC
Rated current41A
Contact resistanceMax 0.2
Temperature range-40℃~+85℃
Breaking capacity≥80N
Plug life test50times
Protection levelIP65/IP68 (1m, 1h)
Safety ClassClass II
Fire ratingUL94 V-0

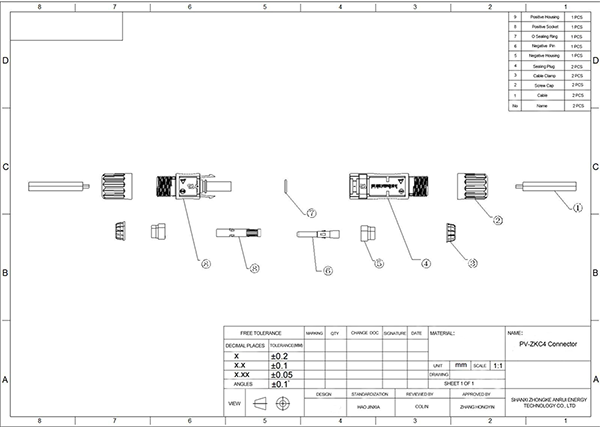

BOM List
NO.ObjectTypeManufacturerQuantityNotes
1Positive HousingPV40ZAsahi Kasei Corp.1 pcs
2Negative HousingPV40ZAsahi Kasei Corp.1 pcs
3Screw CapA3XZG5BASF SE2 pcs
4Cable ClampFR370Asahi Kasei Corp.2 pcs
5Sealing PlugSilicone rubberNingbo Yucheng2 pcs
6O Sealing RingSilicone rubberNingbo Yucheng1 pcs
7Negative PinCopper, tinnedNing Bo Hong Xuan1 pcs
8Positive SocketCopper, tinnedNing Bo Hong Xuan1 pcs
