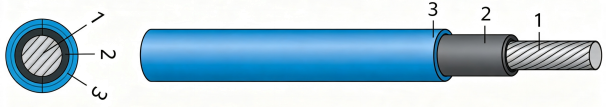

The cable has obtained TÜV EN50618 and IEC 62930 certifications and is specifically designed for photovoltaic panel connections. Engineered to withstand harsh outdoor environments, the cable offers excellent resistance to UV radiation, ozone, and water, ensuring reliable and long-lasting connections within solar power systems.
| Performance Item | Specification / Requirement |
| Conductor DC Resistance (at 20°C) | ≤5.09 Ω/KM |
| Insulation Resistance (at 20°C) | ≥709 MΩ·km |
| Insulation Resistance (at 90°C) | ≥0.709 MΩ·km |
| Sheath Surface Resistance | ≥109 Ω |
| Finished Cable Voltage Withstand Test | AC 6.5kV, 5min, no breakdown |
| Insulated Core DC Withstand Voltage | 1800V, 240h (85°C, 10g/1NaC1), no breakdown |
| Insulation Tensile Strength | ≥8.0 Mpa |
| Insulation Elongation | ≥125% |
| Sheath Tensile Strength | ≥8.0 MPa |
Sheath Elongation | ≥125% |
| Sheath Heat Shrinkage | ≤2% |
| Acid & Alkali Resistance | IEC60811-404 |
| Ozone Resistance | IEC60811-403 / EN50396-8.1.3 |
| Weather Resistance | IEC 62930-Annex E |
| Dynamic Penetration Resistance | IEC 62930-Annex D |
| Low-Temperature Winding (-40°C, 16h) | IEC 60811-504 |
| Flame Resistance | IEC60332-1-2 |
| Chlorine & Bromine Content | IEC 62930 |
| Thermal Life | IEC60216-1, IEC 60216-2, TI120 |
