MK4045 150T1

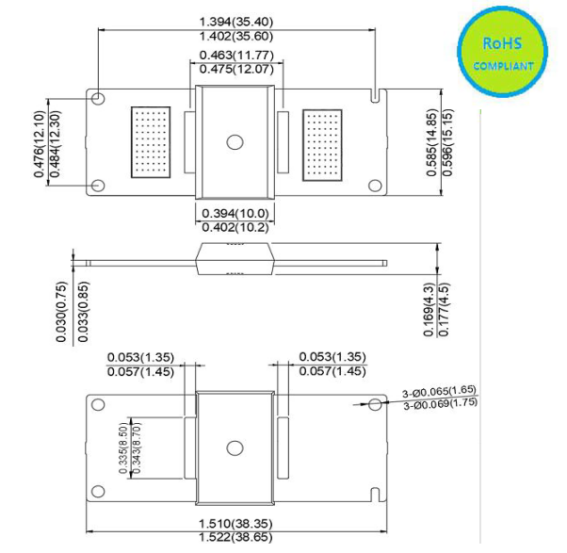

Low power loss, high efficiency
High current capability, low VF
High surge capacity
Guard ring for trasient protection
For use in solarJ-box as a bypass diode
Metal of silicon rectifier, majority carrier conduction
Low power loss, high efficiency
High current capability, low VF
High surge capacity
Guard ring for trasient protection
For use in solarJ-box as a bypass diode
Metal of silicon rectifier, majority carrier conduction
| Characteristics | SYM | MK4045 | Unit |
| Maximum Repetitive Peak Reverse Voltage | VRRM | 45 | V |
| Maximum RMS Voltage | VRMS | 31.5 | V |
| Maximum DC Blocking Voltage | VDC | 45 | V |
| Maximum Average Forward Rectified Current @ Tc=125℃ | I(AV) | 60 | A |
| Peak Forward Surge Current, 8.3mS Single Half Sine-Wave, Superimposed on Rated Load (JEDEC Method) | IFSM | 500 | A |
| Peak Forward Voltage at 40A DC (Note 1) | VF | 0.53 | V |
| Maximum DC Reverse Current at Rated DC Blocking Voltage @ TJ=25℃ | IR | 0.15 | mA |
| Maximum DC Reverse Current at Rated DC Blocking Voltage @ TJ=100℃ | IR | 20 | mA |
| Typical Thermal Resistance Junction to Case | RθJC | 1.5 | ℃/W |
| Junction Temperature Range (Note2) | TJ | -55 to +200 | ℃ |
| Storage Temperature Range | TSTG | -55 to +150 | ℃ |
