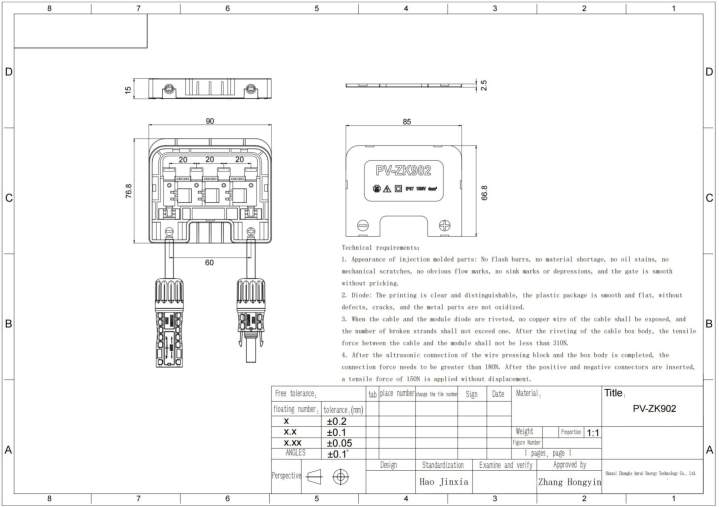

PV ZK902
PV ZK902 junction box uses chip diode with full pot-sealing design. This product has 4 sets of busbar output ports, using welding method, suitable for all kinds of mono and poly-crystalline solar modules.
PV ZK902 junction box uses chip diode with full pot-sealing design. This product has 4 sets of busbar output ports, using welding method, suitable for all kinds of mono and poly-crystalline solar modules.
| Project | Performance Index |
| Rated Current | 16/20 A |
| Rated Voltage | 1500 V DC |
| Cable Size Range | 4 mm² |
| Temperature Range | -40 ~ +85 ℃ |
| Width of Copper Ribbons | Up to 10 mm |
| Protection Level | IP67 |
| Safety Class | Class II |
| Flame Resistance | V-0 |
| Waterproof Structure | Potting sealant |
| Amount of Glue | Appr. 25ml |
| Connection Method | Soldering |
| Insulation Material | PPE+PS |
| Contact Material | Copper tin plating |
| Optional Connector | PV-KST4-EVO2/II, QC4.10, PV-KBT4-EVO2/II, PV-ZKC2 |
